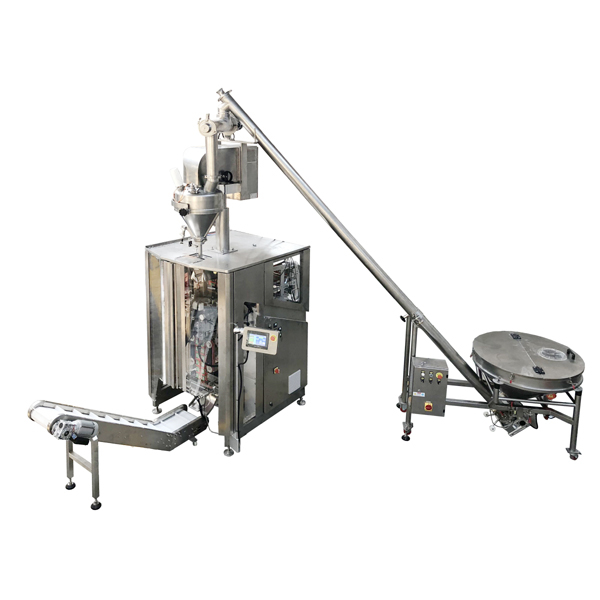

powder quad seal bag packing machine

1)Air-Expend roll film loading, easy dismantle
2)Automatic alarm when roll is not enough
3)PLC control with touch screen operation
4)Double bet film pull driven by servo motor
5)Two servo motor driven for high speed running
6)Various bag size application by change bag former
Filling Range:
  • BPF
  • chocolate powder
  • automatic
  • auger filler
  • servo motor
  • stable, top configuration
  • 50-1000G
  • 1%
quad seal bag/block bottom bag for powder
Food: milk powder, baby powder, coffee creamer, tea powder, drink powder, herb powder
            juice powder, instant coffee, medicinal powder, healthy powder, juice powder
Filling system: Auger filler
Powder material.jpg

Typitcal Packaging Application:
-high production of quad seal bag/block bottom bag
-connect with vffs packer for bag in bag
-connect with carton packer for big box package
-connect with case packer for big case package

1) Air-Expend roll film loading, easy dismantle
2) Automatic alarm when roll is not enough
3) PLC control with touch screen operation
4) Double bet film pull driven by servo motor
5) Servo driven auger filler, high fill accuracy
6) Auger height adjustable, easy dismantle
7) Two servo motor driven for high speed running
8) Various bag size application by change bag former

Model: BP520S BP820S
Machine size: 2050*1300*1910mm 2040*1800*2140mm
Machine weight 750KG 900KG
Bag shape: Block Bottom Bag Block Bottom Bag
Front width 70-200mm 110-300mm
Side Width 30-100mm 50-140mm
Side Seal 5mm 5mm
Bag length 100-350mm 150-500mm
Bag volume: Max 2400cm3 Max 4800cm3
Output: 35bags/minute 35bags/minute
Reel width: Max 520mm Max820mm
Outer diameter: Max 400mm Max 400mm
Inner diameter: Max 76mm Max 76mm
Power supply: 220V,1ph,50hz, 4.7kw 220V,1ph,50hz, 6kw
Air supply: 0.8Mpa, 0.35m3/min 0.8Mpa, 0.5m3/min
