Powder Bag Packaging machine

1)Air-Expend roll film loading, easy dismantle
2)Automatic alarm when roll is not enough
3)PLC control with touch screen operation
4)Double bet film pull driven by servo motor
5)Two servo motor driven for high speed running
6)Various bag size application by change bag former

Filling Range:
Product:
Model:
Capacity:
  • JIABOTECH
  • BPF
  • powder
  • automatic
  • auger filler
  • servo motor
  • stable, top configuration
  • 50-1000G
  • 1%
pillow bag for powder
Food: milk powder, baby powder, coffee creamer, tea powder, drink powder, herb powder
            juice powder, instant coffee, medicinal powder, healthy powder, juice powder
Filling system: Auger filler
Powder material.jpg


Typitcal Packaging Application:
-high production of pillow bag
-connect with vffs packer for bag in bag
-connect with carton packer for big box package
-connect with case packer for big case package

1) Air-Expend roll film loading, easy dismantle
2) Automatic alarm when roll is not enough
3) PLC control with touch screen operation
4) Double bet film pull driven by servo motor
5) Servo driven auger filler, high fill accuracy
6) Auger height adjustable, easy dismantle
7) Two servo motor driven for high speed running
8) Various bag size application by change bag former

Model: BP420 BP460 BP420T
Machine size: 1050*1350*1700mm 1550*1200*1700mm 2600*1850*1770mm
Machine weight 500KG 700KG 1400KG
Bag shape: Pillow Pillow Pillow
Bag width 80-200mm 65-105mm 80-200mm
Bag length 80-350mm 80-200mm 80-350mm
Bag volume: Max 2400cm3 Max 600cm3 Max 2400cm3
Output: 20-60bags/min 80-100bags/min 180bags/min
Reel width: Max 420 Max 460 Max 420
Outer diameter: Max 400mm Max 400mm Max 400mm
Inner diameter: Max 76mm Max 76mm Max 76mm
Film pull: Servo Motor Servo Motor Servo Motor
Connected load: 3KW 5KW 13.5KW
Power supply: 220V,3ph,60hz 220V,3ph,60hz 220V,3ph,60hz
Air supply: 0.6Mpa, 0.15m3/min 0.6Mpa, 0.35m3/min 0.6Mpa, 0.15m3/min

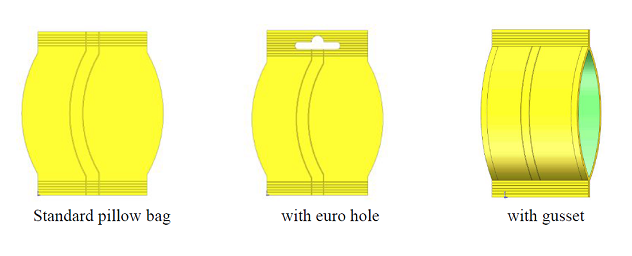

pillow bag.png
