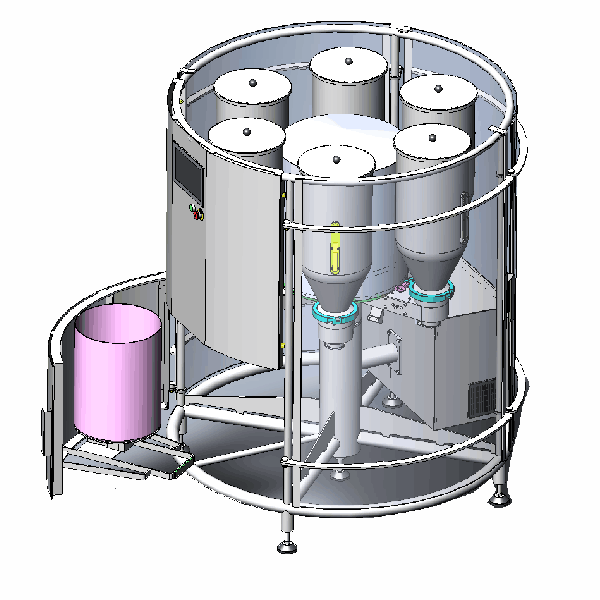

powder batching system

Features:
1.Using servo motor to filling screw for different volume
2.Storage hopper can be dismantled
3.It will alarm automatically when machine is insufficient.
4.The machine is powered by electric, no need compressed air
5.The machine is comply with CE certificate.
6.Product contact part is SUS304.
6.slideway can take out for easy clean

Filling range:
Product:
Model:
Quantity:
  • IB-6
  • JIABOTECH
  • IB
  • powder or small granule
  • automatic
  • volumetric auger type
  • Servo motor
  • reliable, unique design
  • 5-5000g
  • +-1%
Batching System Machine before mixing
medicine powder, milk powder, protein powder, flavour powder, flour powder, sweeter etc
Powder material




  1. Using servo motor to drive the filling screw for different volume

  2. Storage hopper can be dismantled, and it can be custom-made.

  3. It will alarm automatically when machine is insufficient.

  4. The machine is powered by electric, no need compressed air

  5. The machine is comply with CE certificate.

  6. Product contact part is SUS304.



Model IB-6
Hopper Volume 35L*6
Dosing Range Min 5g-Max 5kg
Dosing Way By screw
Weighting Bucket Volume 30L
Batch Time 2min/lot
Recipe:100 670
Powder Consumption φ1500*H1700
Power Supply 1Phase 220V 50Hz



Specifications of Augers
Auger
ITEM.
Dia.
(mm)
Suitable Dosing Range Best dosage Applications of AUGER FILLER
AF-100
(8L)
AF-1000
(25L)
AF-5000
(50L)

Volume(ml) Weight(gr) Volume(ml) Weight(gr)
#1 12.7 0.6-2 ml 0.1- 1 g 2 ml 1 g l          l
#2 15.9 2-6 ml 1-3 g 4 ml 2 g l          l
#3 19.1 6-14 ml 3-7 g 10 ml 5 g l          l
#4 22.2 10-30 ml 5-15 g 20 ml 10 g l          l          l
#5 25.4 20-60 ml 10-30 g 30 ml 15 g l          l          l
#6 31.8 30-100 ml 15-50 g 60 ml 30 g l          l          l
#7 38.1 100-300 ml 50-150 g 200 ml 100 g l          l          l
#8 45 200-600 ml 100-300 g 400 ml 200 g   l          l
#9 50.8 400-1000 ml 200-500 g 600 ml 300 g   l          l
#10 57 600-1400 ml 300-700 g 800 ml 400 g   l          l
#11 63.5 800-2000 ml 400-1000 g 1000 ml 500 g     l
#12 70 1000-3000 ml 500-1500 g 2000 ml 1000 g     l
#13 76.3 1600-5000 ml 800-2500 g 3000 ml 1500 g     l
#14 89 >3000 ml >1500 g 4000 ml 2000 g
