Dual Protein Powder Jar Filling Line

Features:
1.Unique horizontal open hopper for easy clean
2.Weight feedback for high filling accuracy
3.Different container sizes by change nylon screw
4.Bottom up fill with vibrate for full dose, no pollution
5.no-container/no-fill,auto rejector by weight
6.slideway can take out for easy clean
Filling range:
Product:
Model:
Quantity:
  • SF5000D

  • JIABOTECH

  • SF

  • powder or small granule

  • automatic

  • volumetric auger type

  • Servo motor

  • reliable, unique design

  • ≤5000g

  • +-2g

high speed jar can tin powder filling line for
medicine powder, milk powder, protein powder, flavour powder, flour powder, sweeter etc
Powder material

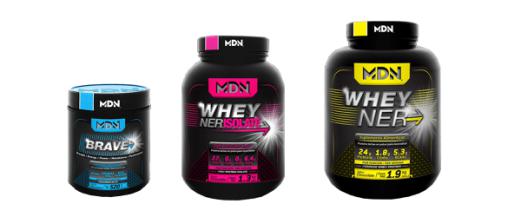

Typitcal Packaging Application:
-high product of jar, can ,tin
-together with powder mixing and processing machine
-connect with capping machine, labelling machine, coding machine, shrink machine, patelizer etc

1. Unique horizontal open hopper for easy clean
2. Auger head height adjustable for various cans
3. Auger filler driven by servo, PLC Control
4. Weight feedback for high filling accuracy
5. high accuracy or capacity for your choice
6. Unique nylon screw for high accuracy positioning
7. Different container sizes by change nylon screw
8. Bottom up fill with vibrate for full dose, no pollution
9. no-container/no-fill,auto rejector by weight
10. slideway can take out for easy clean

Model SF5000D
Fill Way Auger
Products Filled: powder
Fill Speed: 20-40 Fills/minute
Containers Filled: Bottles, Jars, Can, Tin etc
Container Size D:60-210mm, H:80-290mm
Fill Accuracy: ±2G
Fill Range: ≤5000G
Hopper Capacity: 50L,2unit
Special Features: Collector Funnel/Dust Collector
Voltage Single Phase, 220V,50/60HZ
Power Consumption 4.5KW
Dimension (mm) 2813×1535×2500mm
Net Weight 750KG


Specifications of Augers
Auger
ITEM.
Dia.
(mm)
Suitable Dosing Range Best dosage Applications of AUGER FILLER
AF-100
(8L)
AF-1000
(25L)
AF-5000
(50L)

Volume(ml) Weight(gr) Volume(ml) Weight(gr)
#1 12.7 0.6-2 ml 0.1- 1 g 2 ml 1 g l          l
#2 15.9 2-6 ml 1-3 g 4 ml 2 g l          l
#3 19.1 6-14 ml 3-7 g 10 ml 5 g l          l
#4 22.2 10-30 ml 5-15 g 20 ml 10 g l          l          l
#5 25.4 20-60 ml 10-30 g 30 ml 15 g l          l          l
#6 31.8 30-100 ml 15-50 g 60 ml 30 g l          l          l
#7 38.1 100-300 ml 50-150 g 200 ml 100 g l          l          l
#8 45 200-600 ml 100-300 g 400 ml 200 g   l          l
#9 50.8 400-1000 ml 200-500 g 600 ml 300 g   l          l
#10 57 600-1400 ml 300-700 g 800 ml 400 g   l          l
#11 63.5 800-2000 ml 400-1000 g 1000 ml 500 g     l
#12 70 1000-3000 ml 500-1500 g 2000 ml 1000 g     l
#13 76.3 1600-5000 ml 800-2500 g 3000 ml 1500 g     l
#14 89 >3000 ml >1500 g 4000 ml 2000 g
