Granule Stick Packer

1) Air-Expend roll film loading, easy dismantle
2) Automatic alarm when roll is not enough
3) SS304 hopper with stirring
4) Filling volume is adjustable easily by manual
5) Servo film pull, eyemark track, accuracy seal
6) Vertical seal unit openable, easy maintenance

Filling Range:
Product:
Model:
Capacity:
Quantity:
  • JIABOTECH
  • MPK
  • granule
  • automatic
  • volume cup
  • servo motor
  • stable, top configuration
  • 0-100ml
  • 1%

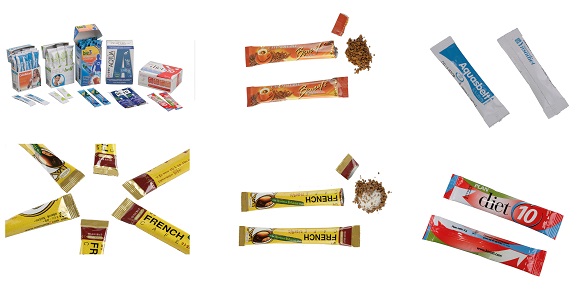

Stick pack pack for sugar
Food: sugar, salt, instant coffee, rice, seed, medical granule
Chemistry: disiccant, silica gel,
Filling system: volume cup
salt 拷贝.jpg

Typitcal Packaging Application:
-high production of stick pack
-connect with vffs packer for huge quanities package
-connect with flow wrapper for big bag package
-connect with carton packer for big box package

1) Air-Expend roll film loading, easy dismantle
2) Automatic alarm when roll is not enough
3) SS304 hopper with stirring
4) Pneumatic volume cup filler for high accuracy
5) Filling volume is adjustable easily by manual
6) Servo film pull, eyemark track, accuracy seal
7) Vertical seal unit openable, easy maintenance
8) Pull by seal device, sold seal

Model MPF240 MPF480 MPK800
Product small granule
Dose Weight 1-3g,3-7g,5-15g,10-30g 30-50g
Dose Way Volume Cup
Accuracy -0.01
Stick Shape Stick, Flat Cut
Stick Width 15-50mm
Stick Length 60-200mm
Speed 40strokes/min
No of lane Max 2lanes Max 6lanes 10lanes
Capacity 80sticks/min 240sticks/min 400sticks/min
Seal type Fin Seal
Packing Film Laminated Film
Air Pressure 0.6-0.8Mpa
Air Consumption 0.4m3/min
Voltage 220V,50HZ, 1Phase
Power 1.2Kw 4.2Kw 6.0Kw
G.W. 250kg 750kg 1000kg
Overall Size 930x1030x1700mm 1300×1400×2500mm 1800×1200×2200mm

01 拷贝.jpg
-
