BP520/820S Block Bottom Bag Packing Machine

Block bottom seal for block bottom bag
No tool change bag former for various bag width
Easily change pouch length on touch screen
Servo motor driven for high speed working
Multi-lane design with less space for high capacity
PLC Control, Easy Touch Screen Operation

Filling Range:
Product:
Model:
Capacity:
Quantity:
  • BP520S/820S
  • JIABOTECH
  • BP
  • granule & powder
  • automatic
  • scale & auger filler
  • servo motor
  • stable, top configuration
  • Max 3600ml
  • 1%
Vertical bag packing machine with capacity 10-40bags/minute, bag shape: block bottom bag.
Optional degassing valve device for ground coffee and coffee bean.
Easy change bag size, applicable for various bag size and package weight.
Sample


Typitcal Packaging Application:
- production of bag
-connect with carton packer for big box package
-connect with case packer for big case package

Block bottom seal for block bottom bag
No tool change bag former for various bag width
Easily change pouch length on touch screen
Servo motor driven for high speed working
Multi-lane design with less space for high capacity
PLC Control, Easy Touch Screen Operation
Model BP520S BP820S
Bag Shape Block Bottom Bag
Bag Size W70-200mm H100-350mm S30-100MM W100-300mm H150-500mm S50-140MM
Capacity 40ppm 30ppm
Fill Range Max 1.8L Max 3.6L
Air Source 0.6Mpa, 350L/min 0.6Mpa, 400L/min
Voltage 3 Phase, 380V, 4.3KW 3 Phase, 380V, 4.7KW
Overall Dimension 1650X1300X1910mm 1850X1800X2140mm
Net Weight 750KG 900KG

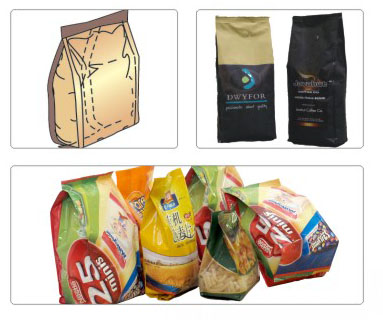

BLOCK SAMPLE
-
