BP240 mutli-use vertical bag packing machine

One machine for 5 bag shape, easy change
No tool change bag former for various bag width
Easily change pouch length on touch screen
Servo motor driven for high speed working
PLC Control, Easy Touch Screen Operation
Filling Range:
0-100ml
Product:
granule powder liquid
Model:
BP240
Capacity:
10-60bags/min
Quantity:
Inquire Add to Basket

  • BP240

  • JIABOTECH

  • BP

  • granule, powder, liquid

  • automatic

  • auger filler, scale, piston filler

  • servo motor

  • stable, top configuration

  • 0-100ml

  • 1%

Vertical bag packing machine with capacity 10-70bags/minute,
bag shape: stick pack, pillow bag, triangle bag ，3 &side seal sachet etc.
Easy change bag shape & size, applicable for various bag size, shape and weight bag package
Sample


Typitcal Packaging Application:
-high production of bag
-connect with vffs packer for bag in bag
-connect with carton packer for big box package
-connect with case packer for big case package

One machine for 5 bag shape, easy change
No tool change bag former for various bag width
Easily change pouch length on touch screen
Servo motor driven for high speed working
PLC Control, Easy Touch Screen Operation
Model BP240
Bag Shape stick pack, pillow bag, triangle bag，3 &side seal sachet
Bag Size W40-110mm H55-150mm
Capacity ≤70ppm
Fill Range Max 100ml
Air Source 0.6Mpa, 200L/min
Voltage 3 Phase, 380V, 3.5KW
Overall Dimension 1200X910X1235mm
Net Weight 350KG

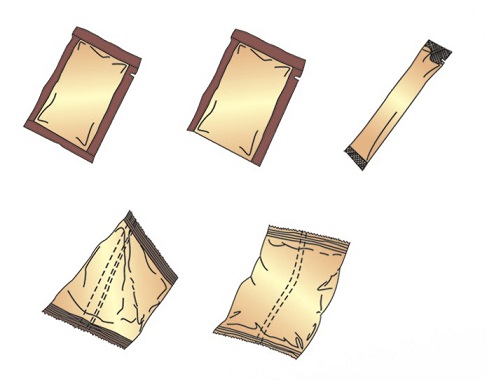

bag shape
-
