mixed nuts & oatmeal paddle blender & mixer

Features:
High active
High uniformity
Low residue
Zero leakage
Full clean
Elegant appearance
Mixing Range:
300L 500L 1000L 1500L
Product:
almond mix nuts cereal oatmeal walnuts
Model:
PB-300 PB-500 PB-1000 PB-1500
Quantity:
Inquire Add to Basket

  • PB300/1500

  • JIABOTECH

  • PB

  • granule

  • automatic

  • horizontal paddle

  • step motor

  • Easy Clean

  • 300-1500L

  • 99% depend on product

granule mixer and blender for
mix nuts, almond, walnut, cereal, oatmeal etc
  IMG_2674
Typitcal Packaging Application:
-Mixing before package
-turneky solution of granule soluiton

High active：Rotate reversely and throw materials to different  angles,mixing time 1-3min
High uniformity：Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%
Low residue：Only 2-5mm gap between shafts and wall, open-type discharging hole，bangboard can be pulled out to clean
Zero leakage： Patent design and ensure the rotating axle & discharging hole w/o leakage
Full clean：Full weld and polishing process for mixing hopper, w/o any fastening piece like screw,nut
Elegant appearance: stainless steel machine body to make its profile elegant except gear reducer, direct mechanism and bearing seat.
Model PB-300 PB-500 PB-1000 PB-1500
Effective Volume 300L 500L 1000L 1500L
Fully Volume 420 650 1350 2000
Fully Coefficient 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Turning Speed 53rpm 53rpm 45rpm 45rpm
Total Weight 660kg 900kg 1380kg 1850kg
Total Power 5.5kw 7.5kw 11kw 15kw
Length（L） 3235

3860
Width（W） 1038

1560
Height（H） 1438

1838
Power Supply 3P AC208-415V 50/60Hz

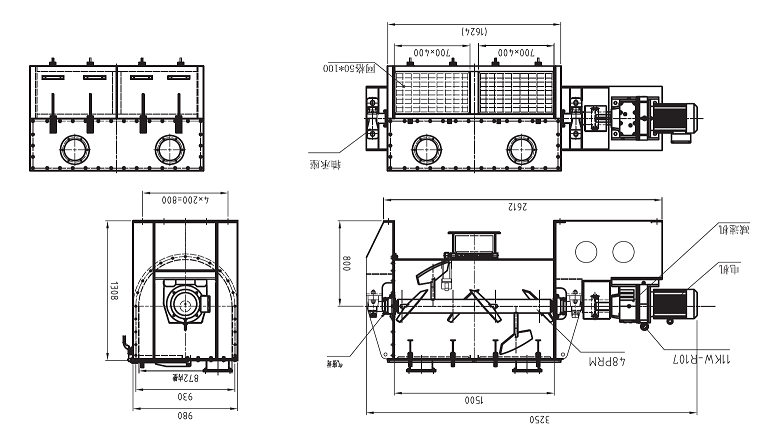

SIZE DRAWING 2
QQ图片20161010100934
