jar can tin spice filling sealing & capping machine

Features:
1.3 in 1 design,save space & cost
2.Auto design with jar unscrambler & cap loader
3.Servo driven capping system,easy adjustable
4.Servo driven auger filler,high filling accuracy
5.Siemens PLC, Eview Touch Screen

Container:
Product:
Model:
Quantity:
  • SF3-1
  • JIABOTECH
  • SF3-1
  • filling sealing and capping
  • automatic
  • Heat Sealing
  • Motor
  • fill seal and cap 3 in 1
  • D:40-100mm
  • H:50-200mm
3 in 1 jar can tin spice filling sealing and capping for
spice, pepper, salt, rice, curry powder, tacp powder,garlic powder
样品
Typitcal Packaging Application:
-high product of jar, can ,tin
-connect with labelling machine, coding machine, shrink machine, patelizer etc

1.3 in 1 design,save space & cost
2.Auto design with jar unscrambler & cap loader
3.Servo driven capping system,easy adjustable
4.Servo driven auger filler,high filling accuracy
5.Siemens PLC, Eview Touch Screen

Model SF3-1
Jar Size According to jar sample
Fill Tool Auger Filler
Capacity 30 Fills/minute
Auger Volume Max 1000g, ±1%
Air Source 0.4m³/min0.6-0.8Mpa
Voltage 3Phase 220V, 4.5KW

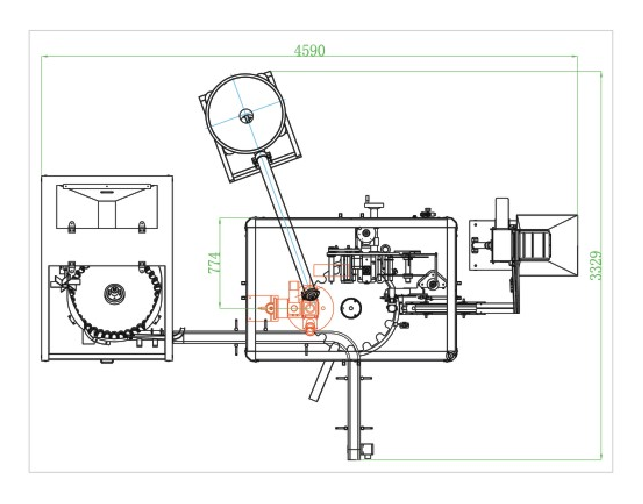

Overall Dimension L4590*W3329*2000mm
Net Weight 1000KG

111



CAR JAR SPICE SALT SAMPLE
