granule premade pouch packing machine

Features:
1.Siemens PLC Control, Touch Screen Operation
2.Easily change pouch width by handle wheel
3.Easily change pouch length by manual
4.Speed can be adjusted directly on touch screen
5.If bag not open fully, no fill, no seal
6.Full safety consideration & protection

Filling Range:
Product:
Model:
Capacity:
Quantity:
  • JIABOTECH
  • RP
  • granule
  • automatic
  • weigher
  • servo motor
  • stable, top configuration
  • 100-2000g
  • 1%

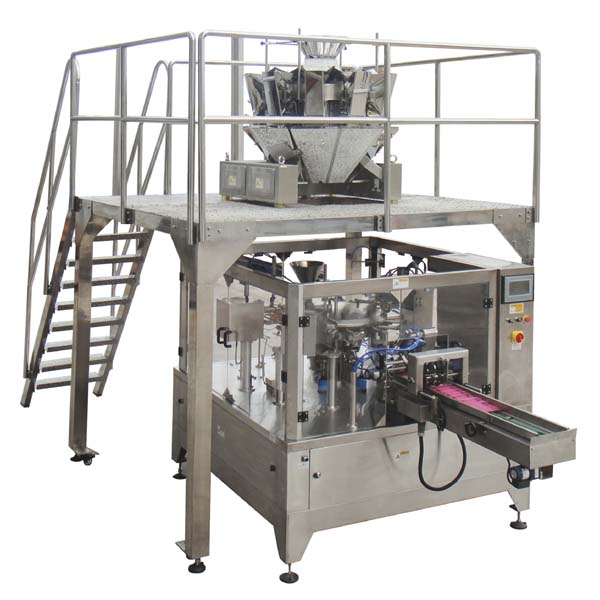

    This is a rotary doypack machine, installed with multi-head weigher. it is applicable for free flowing small granule such as pasta, chips, snack, candy, peanut, biscuit, seed, sweets, etc into premade pouch, zipper pouch etc.. This machine is very popular used in snack food,confectionery, daily use product area.
Capacity for standard pouch: max 60bags/minute. For zipper pouch: max 40bags/minute.

RP8W
granule-pr



Feature:

1: Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2: Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.

3: Automatic checking: No pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.

4: Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

5: Horizontal conveyer style to giving bag: It can put on more bags on the bag storage and have a low requirement about the quality of bags.

6: It can adjust the clips of the six working position at the same time, just need adjust one of the screw which is control the wide size of bag, then the all clips will adjust to the same width. It can save the time and suitable for more different size of bags, especially suitable for the customer who often adjust the wide size of bag.

7: Use the plastic bearing, don't need put on oil, less pollution.

8: Use no oil vacuum pump, avoid polluting the environment in the production.

9: The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

10: Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food

11: With different feeders changed to pack solid, liquid, thick liquid, powder and so on.

12: The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper.

Model: RP8-250Z RP8-200Z
Machine size: 1330*2490*1550mm 1130*2490*1550mm
Package size 1530*2700*1750mm 1330*2700*1750mm
Net Weight 1200KG 1000KG
Gross weight 1400KG 1200KG
Pouch Type: Premade pouch & zipper Premade pouch&zipper
Pouch Size Min 150x150mm 80x100mm
Pouch Size Max 260x350mm 210x350mm
Bag volume: Max 4800cm3 Max 3600cm3
Output: 30bags/min 20-60bags/min
Connected load: 4KW 3KW
Power supply: 220V,1ph,50hz 220V,1ph,50hz
Air supply: 0.6Mpa 0.6Mpa
Control: PLC PLC
Operation Touch  Screen Touch  Screen

granule premade pouch sample
8工位示意图-英文
