Nut X-ray Inspect Machine

Features:
Excellent Operability
Riliable Security
Simple Disassemble
Easy Clean
High capacity
Smart design
high standard
Max Load:
25kg
Belt width :
420mm
Max Height :
100mm
Touch Screen:
15inch
Quantity:
Inquire Add to Basket

  • TXR-4080LP
  • JIABOTECH
  • TXR-4080LP
  • granule,nuts, walnut
  • automatic
  • Clever & Comparect
  • Belt
  • Stable, top configuration
  • 5-50meter/min
  • 0.5 ~ 0.6mm(SUS304 ball) 1.5 ~ 2.0 mm (Glass Ball)
X-ray inspection machine for nuts etc
material

A full range of contaminants inspection including metallic, non-metallic contaminants( glass,ceramic, stone, bone, hard rubber, hard plastic , etc.), it is not limited to product attributes, and can detect metallic ,non-metallic packaging and canned goods, and also the inspection will not be  affected by temperature, humidity, salt content and so on .


Riliable Security
Simple Disassemble
Easy Clean
High capacity
Smart design
high standard
Model TXR-4080LP
Best Inspection Ability
（With product)		 0.5 ~ 0.6mm(SUS304 ball)
1.5 ~ 2.0 mm (Glass Ball)
1.5 ~ 2.0mm(Ceramic Ball)
X-ray tube MAX.210W/80kV
Max Detecting Height 100mm
Max Detecting Width 400mm
Conveyor Parameter Speed 5-50m/min
Width 420mm
Max Height 100mm
Max Load 25kg
Screen Full-color TFT 15" Touch Screen
O/S Windows XP Professional
Connectivity LAN port, USB port
Product Management Complete product log
Parameter Adjustment Auto learning/Manual setting
Image Management Auto image save/print/analyses
Power Supply 220V, AC, 50/60Hz
Body Material SUS304
Purification Easy to wash
Cooling method Air conditioned cooling
Operation temperature 0-40°C
Operation humidity 30-90%
X-ray emissions < 1microsievert per hour
X-ray protection Protective curtain
Rejector 32 tunnel air jet rejector

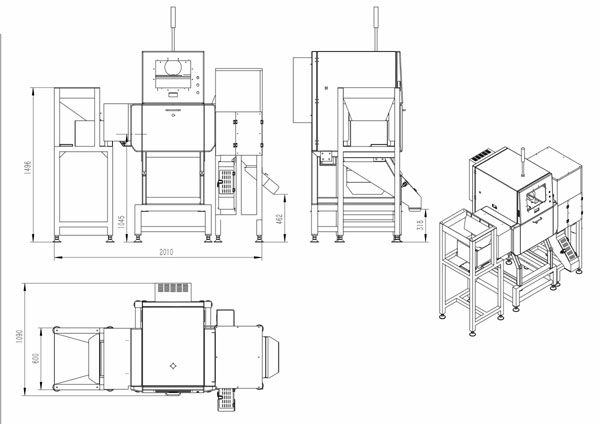

Drawing
