Continous Liquid &Paste Sachet Packer

Features:
1) Continous roller sealing for high speed
2) Air-Expend roll film loading, easy dismantle
3) Automatic alarm when roll is not enough
4) SS304 hopper with stirring, SS316 as optional
5) Pneumatic Piston Filler for high accuracy
6) Filling volume is adjustable easily by manual

Filling Range:
Product:
Model:
Capacity:
Quantity:
  • JIABOTECH
  • SPL
  • liquid & paste
  • automatic
  • piston filler
  • servo motor
  • stable, top configuration
  • 0.5-60ml
  • 1%
sachet pack pack for liquid and paste
Food: ice lolly, oil, honey, syrup, jelly, ketchup, sauce, tomato paste, salad, mayonnaise, butter
Chemical, shampoo, detergent, conditioner, hair mouse, cosmetic
Filling system: standard pneumaitc piston filler or hibar pump filler
liquid sample.jpg


Typitcal Packaging Application:
-high production of sachet
-connect with vffs packer for huge quanities package
-connect with flow wrapper for big bag package
-connect with carton packer for big box package



1) Continous roller sealing for high speed
2) Air-Expend roll film loading, easy dismantle
3) Automatic alarm when roll is not enough
4) SS304 hopper with stirring, SS316 as optional
5) Pneumatic Piston Filler for high accuracy
6) Filling volume is adjustable easily by manual
7) Servo film pull, eyemark track, accuracy seal
Model SPL-190H SPL-190
Sealing type 3Side Seal &4side seal 3Side Seal &4 side seal
Sachet Length 60-150mm 90-120mm
Sachet Width 30-95mm 45-95mm
Filling Capacity 0.5-20ml(hibar pump filler) 5-60ml (Domestic Filler)
Speed 80-120sachets/minute 40-60sachets/min
Voltage 380V,3ph,50hz 380V,3ph,50hz
Power 3Kw 3Kw
G.W. 450KG 450KG
Dimension L1400mm-W1000mm-H1800mm L1400mm-W1000mm-H1800mm

3 拷贝

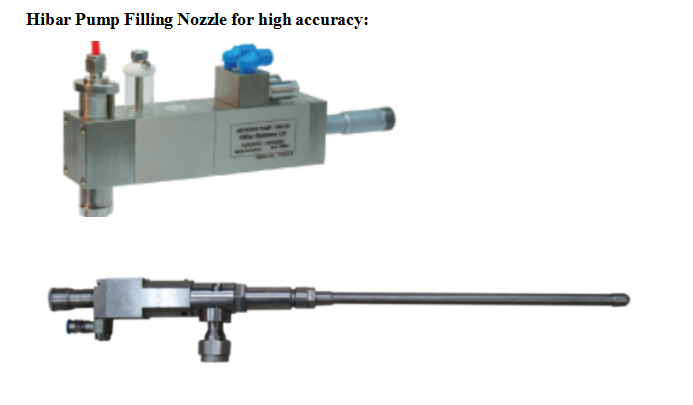

Hibar Pump-
