Check Weigher

Features:
Strong stainless steel struction, water proof design
High precision digital loadcel
Automatic belt speed adjustment
Self-learning function of the product phisical property
50 product preset; easy to edit and recall (storage)
Quickly product shift and speed recall
Touch screen, friendly operation interface

Max Load:
Scale Width:
Scale Length:
Minimun Scale:
Quantity:
  • FC-M150 FC-M220
  • JIABOTECH
  • FC-M
  • primary package
  • automatic
  • High standard
  • Belt
  • High Configurations
  • 25meter/min
  • ±0.3g
CHECK WEIGHER, Toush Screen Operation, Top Standard, High Configuration
Suitable for checking weight of primary package product such as bag, cup, sachet, pouch, tube, bottle etc



Strong stainless steel struction, water proof design
High precision digital loadcel
Automatic belt speed adjustment
Self-learning function of the product phisical property
50 product preset; easy to edit and recall (storage)
Quickly product shift and speed recall
Touch screen, friendly operation interface
Model FC-M150 FC-M220
Max Speed Max 150bags/min Max 130bags/min
Weighing Capacity 5-300g 10-1200g
Weighing Accuracy ±0.3g ±0.5g
Minimum Scale 0.1g 0.1g
Weighing Scale Size 400mm(L)*175mm(W) 400mm(L)*245mm(W)
Weigh Sensor Double-beam load cell Double-beam load cell
Conveying Food Belt (Belt Width:220mm) Food Belt (Belt Width:220mm)
Display Chinese/English Chinese/English
Machine Size L*W*H:750mm*680mm*1420mm L*W*H:1430mm*680mm*1420mm

Conveyor from belt: 700-900mm Conveyor from belt: 700-900mm
Machine Weight 120kg 140kg
Power Supply Single-phase AC200V-240V Single-phase AC200V-240V
Other Standard Accessories Windshield cover,photosensor Windshield cover,photosensor
IP Rating IP65 standard IP65 standard
Construction 304SUS,Polishing 304SUS,Polishing

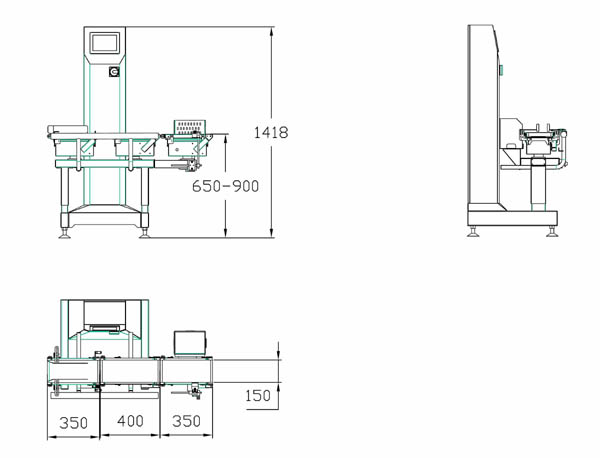

CWC-M150-13070000
